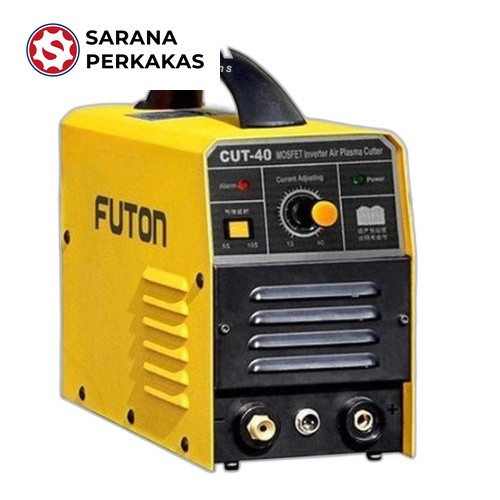

Futon Mosfet Inverter Air Plasma Cutter/Cutting (Mesin Las) CUT-40

Details :

CUT-40 / CUT-60 MOSFET Inverter Air Plasma Cutter

• Adopting advanced inverter technique and excellent imported power equipment, high working efficiency, small in size and light in weight

• Adopting pulse with technique

• Protection equipment are set internally to prevent over heat, over current, lack of voltage etc, to ensure safe operation

• Adopting contact or non-contact cutting and strong striking performance

• Soft magnetic ferrite materials are used in high frequency transformer, which is small wastage. high conversion rate, high efficiency and energy-saving

• Simple structure, excellent technics, durability, reliablity and easy maintenance

• Stable cutting current and smooth in cutting seam

• Adopting passive power factor correction, and high in power factor

• Protection equipment are set to prevent input power lack of phase, lack of voltage and over voltage and strong practicability.

Aksesoris :

• Cutting Torch AG60

• Earth Clamp Set 2M

• AG60 Nozzle Tip

• AG60 Electrode Tip

•  AG60 Shield Cup

• AG60Site Wheel

• Air Plasma Regulator

Spesifikasi :

• Standard Input Voltage : 1 Phase 220V +- 10%

• Frequency : 50/60 Hz

• Rated Input Current : 30 A

• Rated Output Capacity : 96 V

• Non-Load Voltage : 240 V

• Current Adjusting Range : 20 - 40 A

• Duty Cycle : 60%

• Efficiency : 80%

• Power Factor : 0.73

• Insulation Class : F

• Case Protection Degree : IP21S

• Max. Cutting Thickness : < 12 mm

• Overall Dimension : 371 x 153 x 232 mm
