Spesifikasi :
CUT 101Q : CUT - MMA
Standar Input Voltage : 3Phase AC 380V10%
Frequency : 50/60 Hz
Rated input current : 28A / 25A
Rated ouput voltage : 120 V / 27 V
Output current voltage : 360 V / 68 V
Current adjustable range : 20-100 A / 20-320 A
Duty Cycle : 60%100A / 60%320A
Working air pressure : 3.0 5.0 Bar /
Air flow : 140-250L/min
Efficiency : 80%
Power Factor : 0.85
Insulation Class : F
Case protection degree : IP21S
Overall dimension : 625 x 302 x 585 mm
Max. cutting thickness : Min < 35 mm / MMA 3.2-4.0 mm
Aksesories :
Cutting Torch P80 (1 Pcs)
Earth Clamp Set 2M (1 Pcs)
P80 Nozzle Tip (5 Pcs)
P80 Electrode Tips (5 Pcs)
P80 Shield Cup (5 Pcs)
Air Plasma Regulator (1 Pcs)

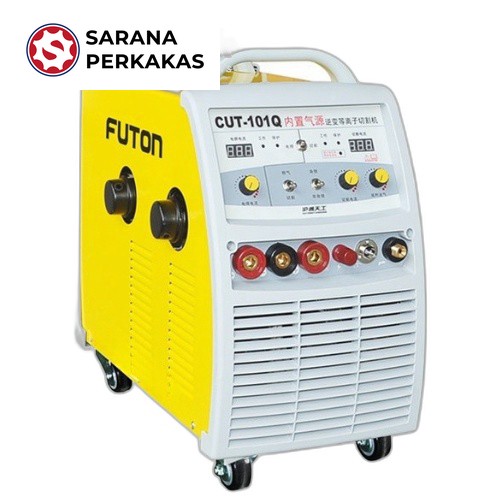

CUT-101Q MOSFET Inverter Air Plasma Cutter
Adopting advanced inverter technique and excellent imported power equipment, high working efficiency, small in size and light in weight
Adopting pulse with technique
Protection equipment are set internally to prevent over heat, over current, lack of voltage etc, to ensure safe operation
Adopting contact or non-contact cutting and strong striking performance
Soft magnetic ferrite materials are used in high frequency transformer, which is small wastage. high conversion rate, high efficiency and energy-saving
Simple structure, excellent technics, durability, reliablity and easy maintenance
Stable cutting current and smooth in cutting seam
Adopting passive power factor correction, and high in power factor
Protection equipment are set to prevent input power lack of phase, lack of voltage and over voltage and strong practicability
