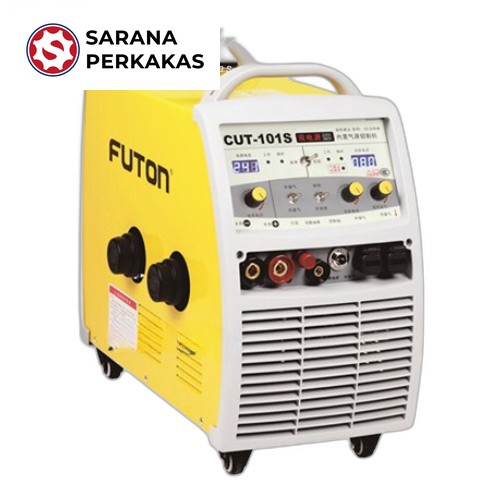

Futon IGBT PLASMA CUT / 1Px220V/3Px380V. 50/60Hz CUT-101S

Spesifikasi :
CUT-101S : CUT - MMA
Standar Input Voltage : 1Phase AC 220V±10%/3Phase AC 380V±10%
Frequency : 50/60 Hz
Rated input current : 28A / 25A
Rated ouput voltage : 120 V / 27 V
Output current voltage : 360 V / 68 V
Current adjustable range : 20-100 A / 20-320 A
Duty Cycle : 60%100A / 60%320A
Working air pressure : 3.0 5.0 Bar /
Air flow : 140-250L/min
Efficiency : 80%
Power Factor : 0.85
Insulation Class : F
Case protection degree : IP21S
Overall dimension : 625 x 302 x 585 mm
Max. cutting thickness : Min < 35 mm / MMA 3.2-4.0 mm

Aksesories :
Cutting Torch P80 (1 Pcs)
Earth Clamp Set 2M (1 Pcs)
P80 Nozzle Tip (5 Pcs)
P80 Electrode Tips (5 Pcs)
P80 Shield Cup (5 Pcs)
Air Plasma Regulator (1 Pcs)
