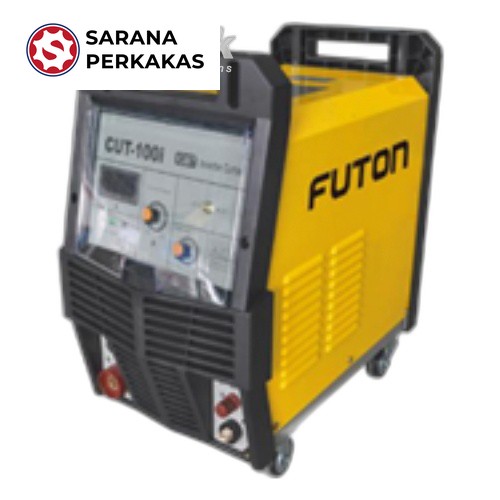

Futon IGBT PLASMA CUT / 3P 380V. 50/60Hz CUT-100i
Brand: Futon
Rp 13.909.265
Rp 12.518.339
Butuh Bantuan? Kontak Kami
Deskripsi
Spesifikasi :
Standar Input Voltage : 3Phase AC 380V +/-10%
Frequency : 50/60 Hz
Rated input current : 23A
Rated ouput voltage : 120 V
Output current voltage : 360 V
Current adjustable range : 20-100 A
Duty Cycle : 80%100A
Working air pressure : 3.0-5.0 Bar
Air flow : 140-250L/min
Efficiency : 80%
Power Factor : 0.85
Insulation Class : F
Case protection degree : IP21S
Overall dimension : 600 x 355 x 605 mm
Max. cutting thickness : <35 mm
Aksesories :
Cutting Torch P80 (1 Set)
Earth Clamp Set 2M (1 Pcs)
P80 Nozzle Tip (5 Pcs)
P80 Electrode Tips (5 Pcs)
P80 Shield Cup (5 Pcs)
Air Plasma Regulator (1 Pcs)
