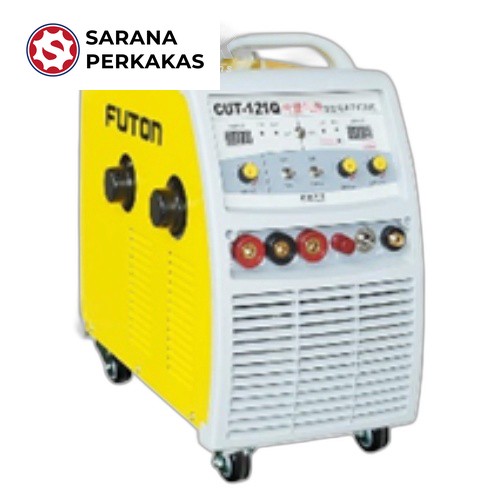

Futon IGBT PLASMA CUT / 3P 380V. 50/60Hz (Build in air compressor) CUT-121Q

Spesifikasi :
Type:CUT-121Q : CUT / MMA
Merek:FUTON
Standar Input Voltage : 3Phase AC 380V10%
Frequency : 50/60 Hz
Rated input current : 32A / 28A
Rated ouput voltage : 128 V / 30 V
Output current voltage : 360 V / 68 V
Current adjustable range : 20-100 A / 20-400 A
Duty Cycle : 60%120A / 60%400A
Working air pressure : 3.0-5.0 Bar / ——
Air flow : 140-260L/——
Efficiency : 80% / 80%
Power Factor : 0.85/0.85
Insulation Class : F/F
Case protection degree : IP21S
Overall dimension : 625 x 302 x 585 mm
Max. cutting thickness : Min<40 mm / MMA 3.2/4.0(welding wire)
Aksesories :
Cutting Torch P80 (1 Set)
Earth Clamp Set 2M (1 Pcs)
P80 Nozzle Tip (5 Pcs)
P80 Electrode Tips (5 Pcs)
P80 Shield Cup (5 Pcs)
Air Plasma Regulator (1 Pcs)
Tang Massa 500A(1 Pcs)
