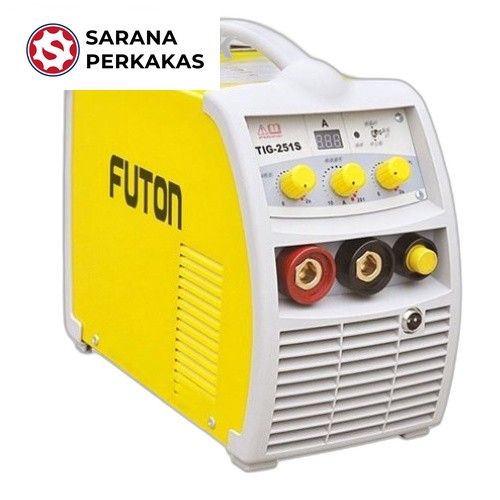

Futon IGBT Inverter TIG/MMA Welder (Mesin Las) TIG-251S

Details :

IGBT Inverter MIG/MAG/MMA Welder :

• SMT Surface mount design, with advanced workmanship

• With good protection of under voltage, over voltage and over current, it makes the machine safe and reliable

• Independent self-adaption switching power supply, adapt to a wide voltage range

• Perfect constant-current electrical characteristics, with more stable arc welding

• Exact digital curernt/voltage display, it makes machine be easy operated

• Modular functional unit design, greatly improve the stability of the machine

• Main circuit with full bridge high power IGBT, high reliability

• With 2T/4T mode, it reduces the working intensity greatly

• Intelligent fan with comprehensive protection

• Advanced IGBT inverter technology, high working frequency (50 Hz), energy saving and environmental protection

• With tri-proof design, it ensures working stable and reliable when in kinds of adverse cicumstances

Aksesoris :

• TIG torch 4M WP-17

• Earth Clamp Set 2M

• Long Back cap

• Short Back cap

• Collet 1.0mm

• Allen Wrench M5

• Euro Connectors

• Alumina Nozzle

Spesifikasi :

• Standard Input Voltage : AC 220V +- 10%V

• Valid Input Voltage Range : 110 - 280 V

• Frequency : 50/60 Hz

• Rated Input Capacity : 6.5 KVA

• Rated Input Current : 30 A

• Output Voltage : 95 V

• Duty Cycle : 60% (190A) , 100% (147A)

• Current Adjusting Range : 10 - 190 A

• Voltage Adjusting Range : 10.4 - 17.6 V

• Efficiency : 85%

• Insulation Class : F

• Shell Protection Class : IP21S

• Overall Dimension : 350 x 172 x 290 mm
