Relative pattern test yes
Auto Shutdown yes
Power Supply 9V 6F22 电池
Size184×89×62mm
Warranty Terms Except for fuses, batteries and watch pens, the rest of the parts warranty for two years
Data Hold yes
Backlight yes
MADE IN China
Security level CAT III 1000V
Maximum reading 5999
Automatic/manual range Automatic
DC Voltage Range±Basic Precision 600mV±(0.8%+5) / 6V±(0.5%+5) / 60V±(0.5%+5) / 600V±(0.5%+5) / 1000V±(1.0%+5)
AC Voltage Range±Basic Precision 6V±(0.8%+5) / 60V±(1.0%+5) / 600V±(1.0%+5) / 1000V±(1.2%+5)
DC Current Range±Basic Precision 600µA±(1.0%+7) / 6000µA±(1.0%+7) / 60mA±(1.0%+7) / 600mA±(1.0%+7) / 6A±(1.5%+7) / 20A±(1.5%+7)
Ac current range±Basic Precision 600µA±(1.8%+7) / 6000µA±(1.8%+7) / 60mA±(1.8%+7) / 600mA±(1.8%+7) / 6A±(2.5%+10) / 20A±(2.5%+10)
Resistance range±Basic Precision 600Ω±(1.0%+5) / 6KΩ±(0.5%+5) / 60KΩ±(0.5%+5) / 600KΩ±(0.5%+5) / 6MΩ±(1.5%+5) / 60MΩ±(3.0%+10)
Capacitance range±Basic Precision 40nF±(3.5%+20) / 400nF±(2.5%+5) / 4µF±(3.5%+5) / 40µF±(4.0%+5) / 400µF±(5.0%+5) / 1000µF仅供参考
Frequency range±Basic Precision10Hz~1MHz±(1.0%+5) / 10MHz仅供参考
Duty cycle range±Basic precision 5%~95%±(2.0%+3)
Temperature range±Basic precision-20℃~0℃±(6.0%+5℃) / 0℃~400℃±(1.5%+4℃) / 400℃~1000℃±(1.8%+5℃)

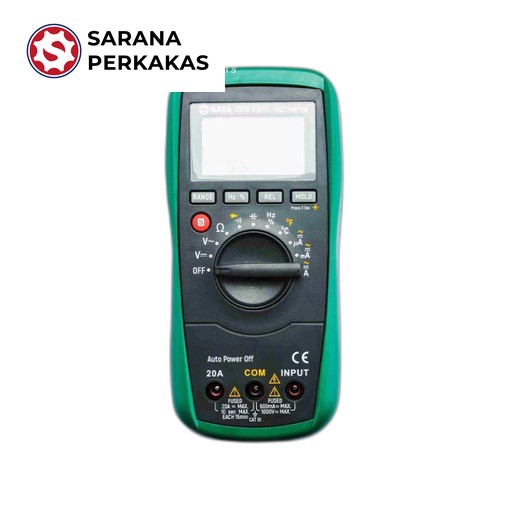

Introduction
◆ High performance, low power consumption and auto-range function
◆ Main features: AC/DC voltage, AC/DC current, resistance, capacitance, frequency, continuity, diode, temperature measurement, backlight
◆ Sturdy, safe and reliable, full-range overload protection
◆ One 9 V 6F22 battery
