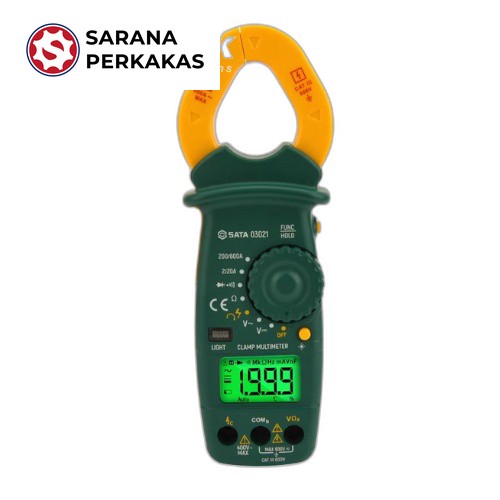

SATA Digital Clamp Multimeter
Brand: Sata
Rp 740.963
Rp 666.867
SALE
Butuh Bantuan? Kontak Kami
Deskripsi
- Safety Level: CAT IV 600V
- Maximum Reading Value: 1999
- DC Voltage:
- 200mV / Resolution: 0.1mV / Accuracy: ±(0.5%+5)
- 2V / Resolution: 1mV / Accuracy: ±(0.8%+5)
- 20V / Resolution: 10mV / Accuracy: ±(0.8%+5)
- 200V / Resolution: 100mV / Accuracy: ±(0.8%+5)
- 600V / Resolution: 1V / Accuracy: ±(0.8%+5)
- AC Voltage:
- 2V / Resolution: 1mV / Accuracy: ±(1.2%+5)
- 20V / Resolution: 10mV / Accuracy: ±(1.2%+5)
- 200V / Resolution: 100mV / Accuracy: ±(1.2%+5)
- 600V / Resolution: 1V / Accuracy: ±(1.5%+5)
- Alternating Current:
- 2A / Resolution: 0.001A / Accuracy: ±(6%+20) ≤ 0.4A / ±(5%+10)
- 20A / Resolution: 0.01A / Accuracy: ±(4%+10) ≤ 0.4A / ±(3%+8)
- 200A / Resolution: 0.1A / Accuracy: ±(2.5%+5)
- 600A / Resolution: 1A / Accuracy: ±(2.5%+5)
- Resistance:
- 200Ω / Resolution: 0.1Ω / Accuracy: ±(1.2%+5)
- 2kΩ / Resolution: 1Ω / Accuracy: ±(1%+5)
- 20kΩ / Resolution: 10Ω / Accuracy: ±(1%+5)
- 200kΩ / Resolution: 100Ω / Accuracy: ±(1%+5)
- 2MΩ / Resolution: 1KΩ / Accuracy: ±(1.2%+5)
- 20MΩ / Resolution: 10KΩ / Accuracy: ±(1.5%+5)
- Continuity and Diode Test:
- Continuity: Resolution 0.1Ω; buzzer sounds when resistance ≤ approx. 30Ω
- Diode: 1mV resolution; displays forward voltage drop (approx. 1.48V)
- Phase Sequence Test:
- Measuring Range: 380V ±10%, 50Hz
- Indication: Forward phase, Reverse phase, Phase loss
- Phase Voltage Accuracy: ±2%
- Power Source: 2 × AAA 1.5V batteries
- Dimensions: 185 × 74 × 40 mm
- Weight: 195g (including battery and case)
