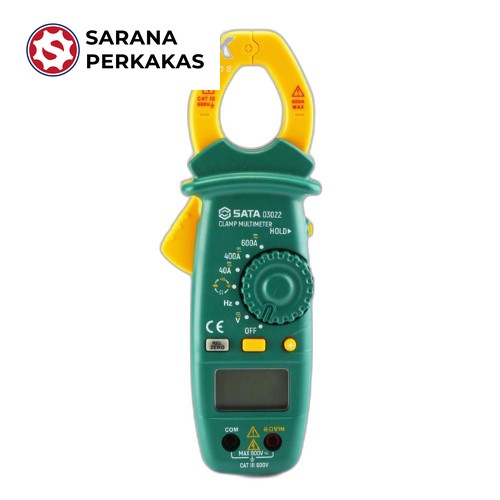

SATA AC/DC Clamp Multimeter
Brand: Sata
Rp 1.085.044
Rp 976.540
SALE
Butuh Bantuan? Kontak Kami
Deskripsi
- Security Level: CAT III 600V
- Maximum Reading Value: 3999
- DC Voltage:
- 400mV / Resolution: 0.1mV / Accuracy: ±(0.8%+5)
- 4V / Resolution: 1mV / Accuracy: ±(0.8%+5)
- 40V / Resolution: 10mV / Accuracy: ±(0.8%+5)
- 400V / Resolution: 100mV / Accuracy: ±(0.8%+5)
- 600V / Resolution: 1V / Accuracy: ±(1.0%+5)
- AC Voltage:
- 4V / Resolution: 1mV / Accuracy: ±(0.8%+5)
- 40V / Resolution: 10mV / Accuracy: ±(1.2%+5)
- 400V / Resolution: 100mV / Accuracy: ±(1.2%+5)
- 600V / Resolution: 1V / Accuracy: ±(1.2%+5)
- DC Current:
- 40A / Resolution: 0.01A / Accuracy: ±(3.0%+10)
- 400A / Resolution: 0.1A / Accuracy: ±(2.5%+6)
- 600A / Resolution: 1A / Accuracy: ±(3.0%+6)
- AC Current:
- 40A / Resolution: 0.01A / Accuracy: ±(2.5%+6)
- 400A / Resolution: 0.1A / Accuracy: ±(2.5%+6)
- 600A / Resolution: 1A / Accuracy: ±(2.5%+6)
- Resistance:
- 400Ω / Resolution: 0.1Ω / Accuracy: ±(1.0%+5)
- 4kΩ / Resolution: 1Ω / Accuracy: ±(1.0%+5)
- 40kΩ / Resolution: 10Ω / Accuracy: ±(1.0%+5)
- 400kΩ / Resolution: 100Ω / Accuracy: ±(1.0%+5)
- 4MΩ / Resolution: 1KΩ / Accuracy: ±(1.5%+5)
- 40MΩ / Resolution: 10KΩ / Accuracy: ±(3.0%+10)
- Capacitance (Relative Value Measurement):
- 40nF / Resolution: 10pF / Accuracy: ±(5.0%+5)
- 400nF / Resolution: 100pF / Accuracy: ±(5.0%+5)
- 4µF / Resolution: 1nF / Accuracy: ±(5.0%+5)
- 40µF / Resolution: 10nF / Accuracy: ±(5.0%+5)
- 100µF / Resolution: 100nF / Accuracy: ±(5.0%+5)
- Frequency (Regularity):
- 9.999Hz / Resolution: 0.001Hz / Accuracy: ±(1.0%+5)
- 99.99Hz / Resolution: 0.01Hz / Accuracy: ±(1.0%+5)
- 999.9Hz / Resolution: 0.1Hz / Accuracy: ±(1.0%+5)
- 9.999kHz / Resolution: 1Hz / Accuracy: ±(1.0%+5)
- 99.99kHz / Resolution: 10Hz / Accuracy: ±(1.0%+5)
- 200kHz / Resolution: 100Hz / Accuracy: ±(1.0%+5)
- Continuity and Diode Test:
- Continuity: Buzzer sounds when resistance is approximately ≤30Ω
- Diode: Resolution 1mV; displays forward voltage drop
Categories
Alat Ukur Digital
Clamp Meter
