Spesifikasi

Input Voltage (V) : AC220V ± 15% Frequency (Hz) : 50/60 Rated Input (A) MMA/TIG : 11 No-Load Voltage (V) : 72 Output Current Range (A) : 10-400 Rated Output Voltage (V) MMA/TIG : 26 Arc force (A) : – Duty Cycle (%) : 60 No-Load Loss (W) : 80 Arc ignition : frequency arc start Efficiency (%) : 85 Power Factor : 0.93 Insulation Grade : F Housing Protection Grade : IP21 Net Weight (Kg) : 17.5 Dimension (mm) : 488236435

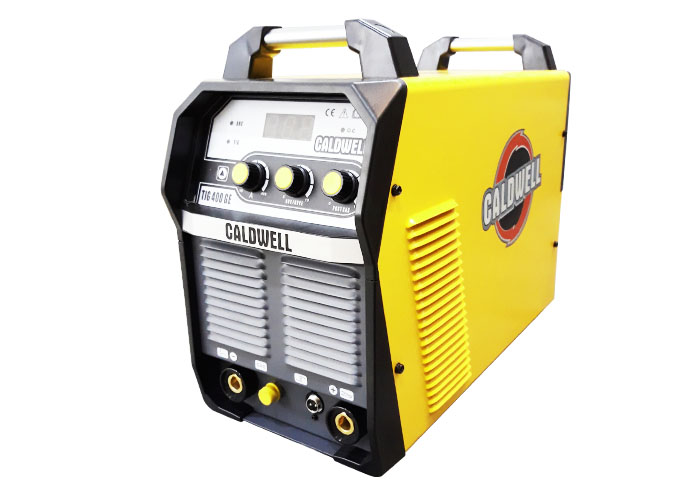

Description Strong ability against the power fluctuation, it can work normally under the fluctuation of ±15% Fashionable appearance, small size, light weight and easy to move Using the three-proofed structure against the dust,moisture and corrosion, very considerable protectionfor all the electronic components This series of manual arc welding machine using current-mode PWM pulse width adjustment technology IGBT inverter technology, high-power fast recovery diode application technology, product reliability, stability, higher With undervoltage, overheating, overcurrent, lack of protection, to ensure product reliability Stable output performance, real-time monitoring of the welding output power, the effective management of the output current to ensure welding welding reliability Has a good dynamic characteristics, easy arc, arc stability, easy to control the pool With precise preset welding current to make sure good welding result and energy saving,more Easy to operate and suitable for different thickness work-piece, thin plate in small current and thick plat in large current
