Spesifikasi

Input Voltage (V) : AC380V ± 15% Frequency (Hz) : 50/60 Rated Input (A) : 17 No-Load Voltage (V) : 320 Output Current Range (A) : 20-100 Rated Output Voltage (V) : 120 Duty Cycle (%) : 60 No-Load Loss (W) : 80 Arc Ignition : 85 Efficiency (%) : 0.93 Power Factor : F Insulation Grade : IP21 Housing Protection Grade : No Contact Air Pressure (Kg) : 4-6 Cutting tickhness (mm) : 0.5-35 Net Weight (Kg) : 15.45 Dimension (mm) : 480210340

Description Features

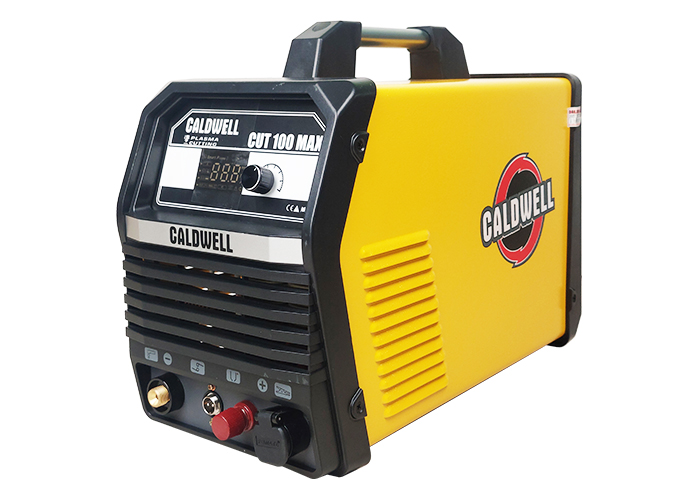

There is a 2T/4T Spot mode, you can choose manual or automatic to support remote cutting. Digital SMART LED MAX SERIES, MCU control technology sophisticated and up to date. For Plasma cutting use the Plasma Torch P80 There is a POST FLOW setting to manage expenses air per second.
