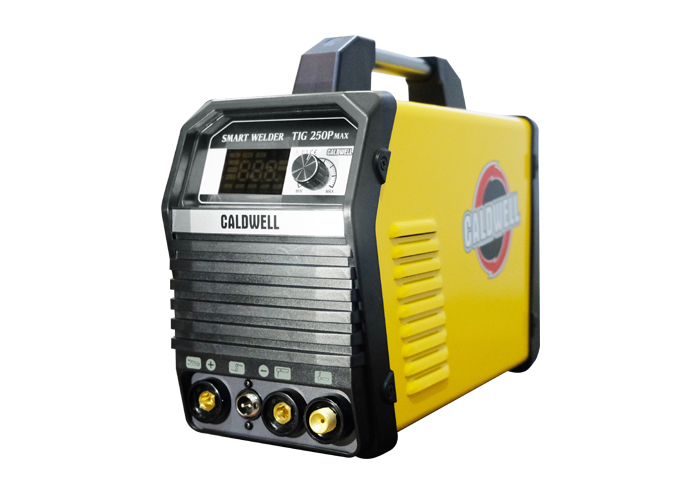

INVERTER TIG 250 P MAX 1PH 220V CALDWELL

Spesifikasi Power voltage (V) : AC220V ± 15% Frequency (Hz) : 50/60 Rated input current (A) : 26 No-load voltage (V) : 70 Output current (A) : 8 – 250 Rated output voltage (V) : 18 Force adjusting range (A) : – Duty cycle (%) : 60 No-load loss (W) : 40 ARC start high : frequency arc start Efficiency (%) : ≧80 Power factor : ≧0.7 Insulation grade : F Housing protection grade : IP21 Weight (kg) : 6.15 Dimensions (mm) : 400*159*300 Description 1. Mosfet inverter circuit,high frequency arc starting 2. TIG & MMA Function 3. Automatic compensation for voltage fluctuation, can work againt input voltage fluctuation (V±15%) 4. small splashing , great penetration , easy and simple to operate and aesthetic appearance of weld seam 5. compact , portable , highly effective , low power consumption
