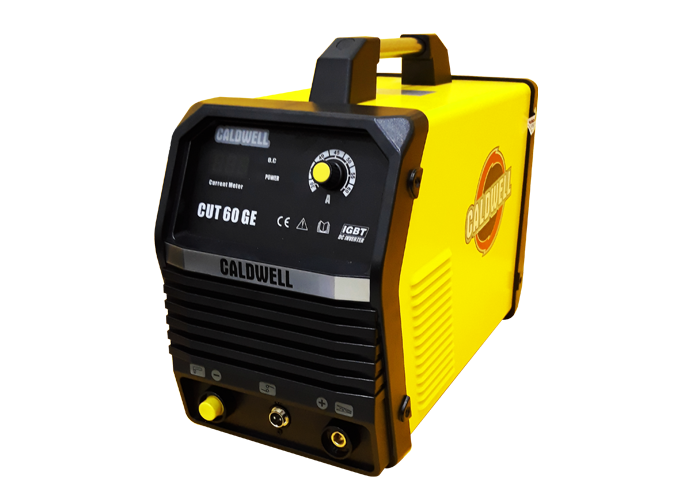

INVERTER PLASMA CUT 60GE 3PH380V CALDWELL

Spesifikasi Input Voltage (V) : AC380V ± 15% Frequency (Hz) : 50/60 Rated Input (A) : 12 No-Load Voltage (V) : 275 Output Current Range (A) : 20-60 Rated Output Voltage (V) : 104 Duty Cycle (%) : 60 No-Load Loss (W) : 80 Arc ignition : Transfer Efficiency (%) : 85 Power Factor : 0.93 Insulation Grade : F Housing Protection Grade : IP21 Air pressure (Kg) : 4-5 Cutting tickhness (mm) : 0.5-20 Net Weight (Kg) : 10.5 Dimension (mm) : 428*219*354 Features Strong ability against the power fluctuation, it can work normally under the fluctuation of ±15% Fashionable appearance, small size, light weight and easy to move Using the three-proofed structure against the dust,moisture and corrosion, very considerable protection for all the electronic components This series of manual arc welding machine using current-mode PWM pulse width adjustmenttechnology, IGBT inverter technology, high-power fast recovery diode application technology, product reliability, stability, higher. With undervoltage, overheating, overcurrent, lack of protection, to ensure product reliability Stable output performance, real-time monitoring of the welding output power, the effective management of the output current to ensure welding welding reliability Has a good dynamic characteristics, easy arc, arc stability, easy to control the pool With precise preset welding current to make sure good welding result and energy saving,more easy to operate and suitable for different thickness work-piece, thin plate in small current and thick plate in large current
