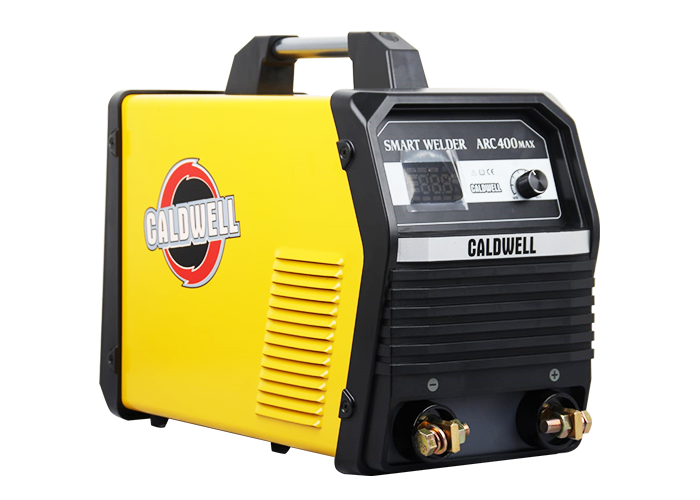

INVERTER ARC 400MAX 3PH380V CALDWELL

Spesifikasi Input Voltage (V) : AC380V±15% Frequency (Hz) : 50/60 Rated Input Current (A) : 23 No-Load Voltage (V) : 62 Output Current Range (A) : 40-400 Rated Output Voltage (V) : 36 Duty Cycle (%) : 60 No-Load Loss (W) : 80 Efficiency (%) : 85 Power Factor : 0.93 Insulation Grade : F Housing Protection Grade : IP21 Net Weight (kg) : 12.51 Dimension (mm) : 458*219*353 Description 1. Very easy to operate in all kinds of welding positions (horizontal, overhead or vertical welding) 2. Equipped with an SMART LCD DISPLAY so that it can be used and adjusted easily (provided manual adjustment features for VRD, AMPERE, HOT START, ARC FORCE, ANTI STICK, and for amperage settings can give the ampere range information needed for each welding wire) 3. Can be used on all types of good or good acid wire 4. Has a high ability with electrical fluctuations that work perfectly using GENERATOR power 5. Can be used for welding all kinds of materials including CARBON STEEL, LOW-ALLOY and stainless steel for the use of welding wires from 1.6mm to 5mm 6. Able to use welding cables up to 100 Meters 7. Using TRAFO with 100% quality COPPER winding 8. A large power cable and socket with COPPER windings.
