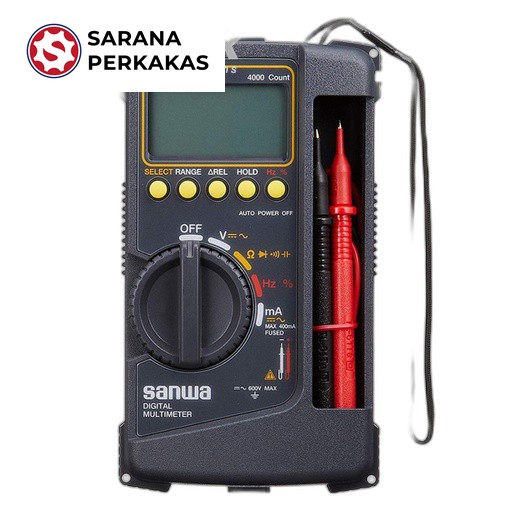

Multimeter SANWA CD800a / CD 800 A / CD-800 A / CD-800A

Measuring method - method

Display 4000 count

Range selection Auto and manual ranges

Over display "O.L" is displayed(except AC/DC 600V ranges)

Polarity Automatic selection(only " - " is displayed)

Battery low warning Battery mark lights when the internal

battery's power is

below approx. 2.4V

Sampling rate 2 times / sec

Operating temperature / humidity 5~40C / 5~31C, 80%RG(Max)

Storage temperature / humidity -10C"''50C, below 70%RH No

condensation

Environmental condition Altitude 2000m or below, pollution degree II

Power consumption 7mW at DCV

Continuous use time About 150 hours at DCV

Bandwidth 40"''400Hz

Fuse / Battery 0.5A/250V 1.5kA 5.2x20mm / R6P x 2

Size / Mass H176 x W104 x D46mm / 340g

Standard accessories included Hand strap, Instruction manual
