Features :

• Dual display shows voltage/current and its frequency

• True RMS

• EF (Electric Field) sensing

• VFD (Variable Frequency Drive) frequency measurement

• Low input impedance voltage measurement capable of attenuating the effects of ghost voltage

• Data hold, Range hold

• Relative value

• Peak hold (5msec.)

• Auto Power Save (30min.) (cancelable)

• Sampling rate : approx. 5 times / sec

Spesifikasi :

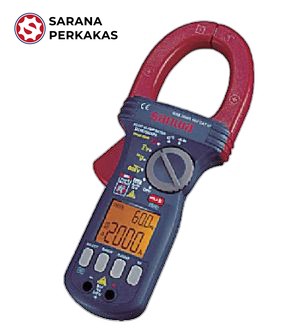

• Model : DCM2000DR

• Direct Current : 2000A

• Alternating Current : 2000A

• DC Voltage : 1000V

• AC Voltage (V) : 1000

• Resistance (M) : 40

• Detection Method : True Effective Value Rectification (RMS)

• Max Display : 6000 counts

• Max Measurement Conductor Diameter (mm) : 55
