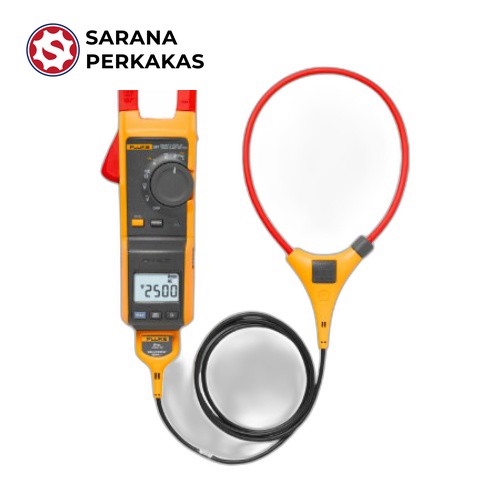

FLUKE 381 Remote Display True-RMS AC/DC Clamp Meter with iFlex

Key features

Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement with measurement accuracy

Removable magnetic display can be mounted where it is easily seen

iFlex® Flexible Current Probe expands the measurement range to 2500 A AC

CAT IV 600 V, CAT III 1000 V

Other key features

Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings

Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it

Ergonomic design fits in your hand and can be used while wearing protective equipment

Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement

Range 999.9 A

Resolution 0.1 A

Accuracy 2% ± 5 digits (10-100 Hz)

5% ± 5 digits (100-500 Hz)

Crest Factor (50/60 Hz) 3 @ 500 A

2.5 @ 600 A

1.42 @ 1000 A

Add 2% for C.F. > 2

AC Current via Flexible Current Probe

Range 999.9 A / 2500 A (45 Hz – 500 Hz)

Resolution 0.1 A / 1 A

Accuracy 3% ± 5 digits

Crest Factor (50/60 Hz) 3.0 at 1100 A

2.5 at 1400 A

1.42 at 2500 A

Add 2% for C.F. > 2

DC Current

Range 999.9 A

Resolution 0.1 A

Accuracy 2% ± 5 digits

AC Voltage

Range 600 V /1000 V

Resolution 0.1 V / 1 V

Accuracy 1.5% ± 5 digits (20 – 500 Hz)

DC Voltage

Range 600.0 V /1000 V

Resolution 0.1 V / 1 V

Accuracy 1% ± 5 digits

Frequency – Via Jaw

Range 5.0 – 500.0 Hz

Resolution 0.1 Hz

Accuracy 0.5% ± 5 digits

Trigger Level 5 – 10 Hz, ≥ 10 A

10 – 100 Hz, ≥ 5 A

100 – 500 Hz, ≥ 10 A

Frequency via Flexible Current Probe

Range 5.0 to 500.0 Hz

Resolution 0.1 Hz

Accuracy 0.5% ± 5 digits

Trigger Level 5 to 20 Hz, ≥ 25 A

20 to 100 Hz, ≥ 20 A

100 to 500 Hz, ≥ 25 A

Resistance

Range 600 Ω/6 kΩ/60 kΩ

Resolution 0.1 Ω/1 Ω/10 Ω

Accuracy 1% ± 5 digits

Mechanical Specifications

Size (L x W x H) 277 x 88 x 43 mm (55 mm for remote unit)

Jaw Opening 34 mm

Flexible Current Probe Diameter 7.5 mm

Flexible Current Probe Cable Length

(head to electronics connector) 1.8 m

Environmental Specifications

Operating Temperature -10°C to +50°C

Storage Temperature -40°C to +60°C

Operating Humidity Non condensing (< 10°C)

≤ 90% RH (at 10°C to 30°C)

≤ 75% RH (at 30°C to 40°C)

≤ 45% RH (at 40°C to 50°C)

(Without Condensation)

Operating Altitude 2,000 meters

Storage Altitude 12,000 meters

EMI, RFI, EMC, RF EN 61326-1:2006, EN 61326-2-2:2006

ETSI EN 300 328 V1.7.1:2006

ETSI EN 300 489 V1.8.1:2008

FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249

FCCID: T68-F381

RSS-210 IC: 6627A-F381

Temperature Coefficients Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C

Wireless Frequency 2.4 GHz ISM Band 10 meter range

Safety Compliance ANSI/ISA S82.02.01:2004

CAN/CSA-C22.2 No. 61010-1-04

IEC/EN 61010-1:2001 to 1000V CAT III, 600V CAT IV.

Double Insulation Clearance Per IEC 61010-2-032

Double Insulation Creepage Per IEC 61010-1
