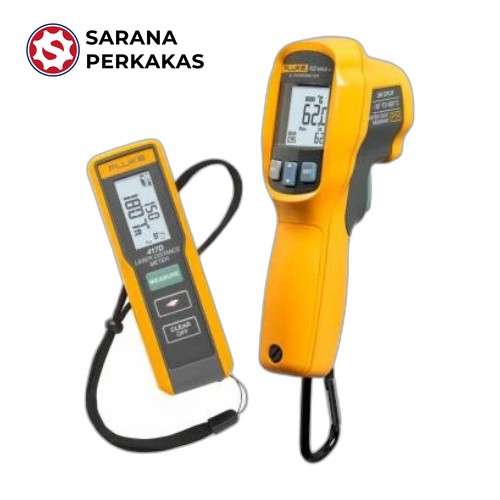

The most rugged Fluke 62 MAX+ IR thermometer teamed with the easy-to-use 417D Laser Distance Meter has everything you need to configure HVAC layouts and troubleshoot electrical problems. For electrical devices use the IR thermometer to test overheating issues and for HVAC layout, use the 417D to configure layout distance or area and use continuous measurement for marking references.

Fluke 417D Laser Distance Meter Additional Features:

Continuous measurement capable: adjusting as you move closer and farther from your target

Quickly calculate area (sq. feet/meters)

1-meter drop tested and IP54 rated: built to withstand rainy or dusty conditions

Great for interior and exterior applications

Fluke 62 MAX+ IR Thermometer Additional Features:

Dust and water-resistant: IP54 rated

Rugged: 3-meter (9.8-foot) drop tested

Ergonomically designed: Completely redesigned for a more natural hand fit

Large, backlit display: Makes data easier to read, even in dark areas

Typical range [1] 0.2-40 m/0.6-131 ft

Typical measuring tolerance* [1] 2.0 mm ± 1.5 mm/± 0.06 in ***

Maximum measuring tolerance [2] ± 3.0 mm/0.12 in ***

Accuracy up to 10m (+/-) ± 2 mm

Display 2 line/1 mm/1/32 in

Display illumination Yes

Laser point at distance 6/30/60 mm (10/40/100 m)

Area Yes

Units setting (smallest units displayed) 0,000m, 0' 00'' 1/32, 0 in 1/32

Auto laser switch off 90 sec

Auto power switch off 180 sec

General

Laser class II

Laser type 635 nm, <1 mW

Protection class IP54

Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 Up to 3,000 measurements

Size (Hx W x D) 11.9 x 3.8 x 2.6 cm

Drop test 1 meter

Temperature range: Storage -25 °C to 70 °C (-13 °F to 158 °F)

Temperature range: Operation -10 °C to 50 °C (14 °F to 122 °F)

Calibration cycle Not applicable

Maximum relative humidity 85 % @ 20°F to 120 °F

(-7 °C to 50 °C)

Safety CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II)

EMC 61326-1:2006
