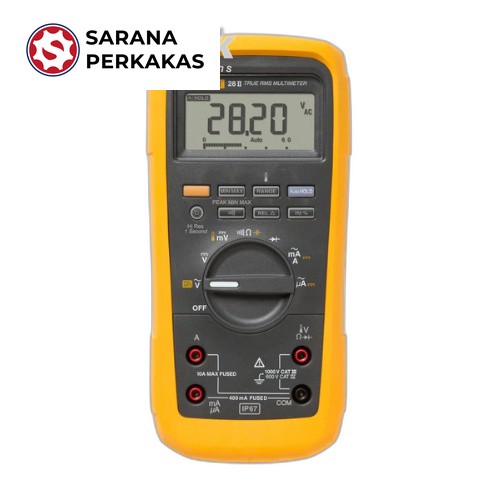

FLUKE 28 II Ex Intrinsically Safe TrueRMS Digital Multimeter

The Fluke 28 II digital multimeter defines the standard for operating in harsh conditions with the features and accuracy to troubleshoot most electrical problems. The meter offers an IP 67 (waterproof and dustproof) rating, MSHA approvals, extended operating temperature range of -15 °C to +55 °C (5 °F to 131 °F, -40 °C for up to 20 minutes) and 95% humidity, and has been designed and tested to withstand a 3 m (10 ft) drop. The Fluke 28 II Rigged Digital Multimeter is built to work in the toughest environments.

Other key capabilities

Measure up to 1000 V AC and DC

Measure up to 10 A (20 A for 30 seconds)

10,000 μF capacitance range

Frequency to 200 kHz

Extended AC voltage bandwidth– 15 Hz to 20 kHz

Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument

Resistance, continuity and diode test

Min/Max and average recording to capture variations automatically

Peak min-max

Hi resolution 20,000 count display mode

True-rms ac voltage and current for accurate measurements on non linear signals

Backlit keypad buttons allow for easy visibility in low-lit areas

Large display digits and 2 level bright white backlight for increased visibility

Reversible holster for added protection when not in use

Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition IEC and ANSI electrical safety standards

Long battery life (800 hours)

Relative mode to remove test lead resistance from low ohms measurements

Auto and manual ranging for maximum flexibility

Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks

Accuracy Specifications

DC voltage Range 0.1 mV to 1000 V

Accuracy 0.05% + 1

AC voltage Range 0.1 mV to 1000 V

Accuracy 0.7% + 4

DC current Range 0.1 μA to 10 A

Accuracy 0.2% + 4

AC current Range 0.1 μA to 10 A

Accuracy 1.0% + 2

Resistance Range 0.1 Ω to 50 MΩ

Display counts 6000

Capacitance 1 nF to 9999 μF

Frequency 0.5 Hz to 199.99 kHz

Temperature -200°C to +1090°C

Low pass filter (Measurement on VSD’s) Yes

Compliance CAT IV 600 V , CAT III 1000 V

IP rating IP 67

Power Three AA batteries

Battery life 800 hours

General Specifications

Display Bar graph/backlight Yes/Yes

Data storage Peak transient capture 250 μS

Min/Max/Avg Yes

Reading hold Yes

Other features Relative readings (zero) Yes

Battery type Three AA batteries

Warranty and protection Safety rating CAT IV 600 V/CAT III 1000 V

Mine safety MSHA Approved

External protection Rubber holster

Drop test 10 feet drop test

Dustproof/waterproof Yes, IP 67 rated

Warranty Limited lifetime

Size (H x W x L) with holster 6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 in)
