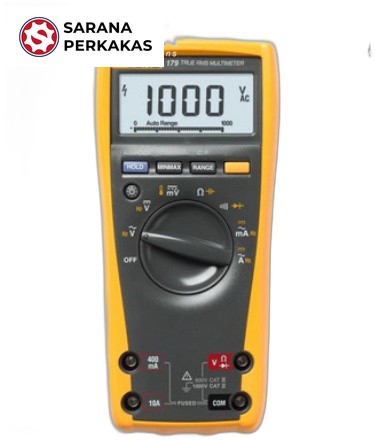

FLUKE 179 True-RMS Digital Multimeter

Key features

1000V AC/DC; 10A AC/DC (with test leads and current jacks); resistance to 50 MΩ; capacitance to 10,000 μF, frequency to 100 kHz; temperature from -40 ℃ to 400 ℃

Robust, fast and accurate with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-Average recording

Backlit digital display, analog bar graph, and built-in temperature measurements with included thermocouple.

The Fluke 179 True-rms Digital Multimeter is the industry-standard troubleshooting tool for electrical and electronic systems. This incredibly versatile multimeter makes a perfect front-line troubleshooting tool with an input protection rating of CAT III 1000 V, CAT IV 600 V. The built-in temperature measurement with the included thermocouple, analog bar graph and backlit digital display make it easier to take the measurements you need.

A full set of basic and advanced troubleshooting capabilities including:

Manual and automatic ranging

Display Hold and Auto Hold

Min/Max-Average recording

Voltage measurements to 1000 V AC or DC

Current measurements to 10 A AC/DC

Resistance to 50 MΩ; capacitance to 10,000 μF, frequency to 100 kHz; temperature from -40 ℃ to 400 ℃

Specifications

Voltage DC Accuracy1 ±(0.09% + 2)

Max. resolution 0.1 mV

Maximum 1000 V

Voltage AC Accuracy1 ±(1.0% + 3)

Max. resolution 0.1 mV

Maximum 1000 V

Current DC Accuracy1 ±(1.0% + 3)

Max. resolution 0.01 mA

Maximum 10 A

Current AC Accuracy1 ±(1.5% + 3)

Max. resolution 0.01 mA

Maximum 10 A

Resistance Accuracy1 ±(0.9% + 1)

Max. resolution 0.1 Ω

Maximum 50 MΩ

Capacitance Accuracy1 ±(1.2% + 2)

Max. resolution 1 nF

Maximum 10,000 µF

Frequency Accuracy1 ±(0.1% + 1)

Max. resolution 0.01 Hz

Maximum 100 kHz

Temperature Accuracy1 ±(1.0% + 10)

Max. resolution 0.1°C

Range -40°C / 400°C

1. Accuracies are best accuracies for each function

Environmental Specifications

Operating temperature -10°C to +50°C

Storage temperature -30°C to +60°C

Humidity (without condensation) 0% – 90% (0°C – 35°C)

0% – 70% (35°C – 50°C)

Safety Specifications

Overvoltage category EN 61010–1 to 1000 V CAT III

EN 61010–1 to 600 V CAT IV

Agency approvals UL, CSA, TÜV listed and VDE Pending
