Product Features :
O.H.Indicator
O.C.Indicator
2T-4T –
Gas After-Flow
Non-Contact Start
HF
Spesifikasi :

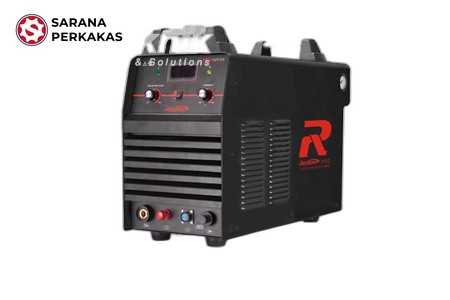

Model : Redbo Pro CUT 100
Input voltage (V) : 3PH AC 380V±15%, 50/60Hz
Rated Input Current (A) : 23
Output Power Capacity (KVA) : 15.2
Output Current Range (A) : 30 - 100
Max Cutting Thickness (MM) : 25 - 40
Air Pressure (Mpa) : 0.4 - 0.5Jua
No Load Voltage (V) : 330
Rated Duty Cycle (%) : 60
Efficiency (%) : 85
Power Factor : 0.93
Dimension (MM) : 690 x 275 x 474
