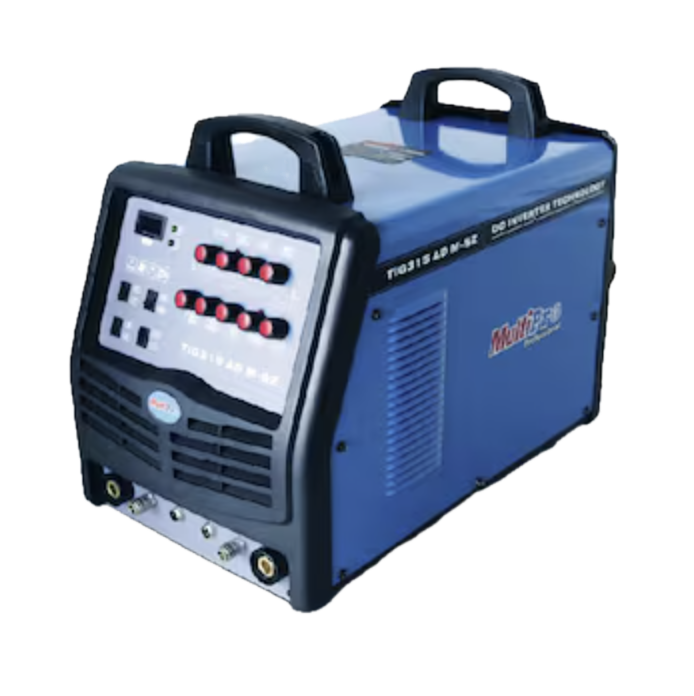

Model Number TIG 315AD M-SZ Unit 1unit Input Voltage (V) 380 (3ph ± 15%) Frequency (Hz) 50/60 No. Load Voltage (V) DC 45 Rated Input Power (KVA) TIG: 8.4, MMA: 12.4 Rated Input Current (A) TIG: 12.8, MMA: 19 Rated Working Voltage (V) TIG: 22.6, MMA: 32.6 Rated Duty Cycle (%) 60 Power Factor ≥ 0.9 Efficiency (%) ≥ 85 Insulation Type F Protection Type IP21S Pulse Frequency (Hz) 0.5-300 Art Starting HF AC Balance (%) 20-80 Down Slope (s) 0-10 Post Flow Time (s) 0-10 Pre Flow Time (s) 0-2 Dimensions (mm) 493x365x355 Product's Accesories 1 x TIG torch set 4.0 mtr 1 x Electrode holder set 2.0 mtr 1 x Earth clamp set 1.5 mtr 1 x Wire Brush/Chipping hammer 1 x Hand shield 1 x Gas hose set Berat (Kg) 32.5
