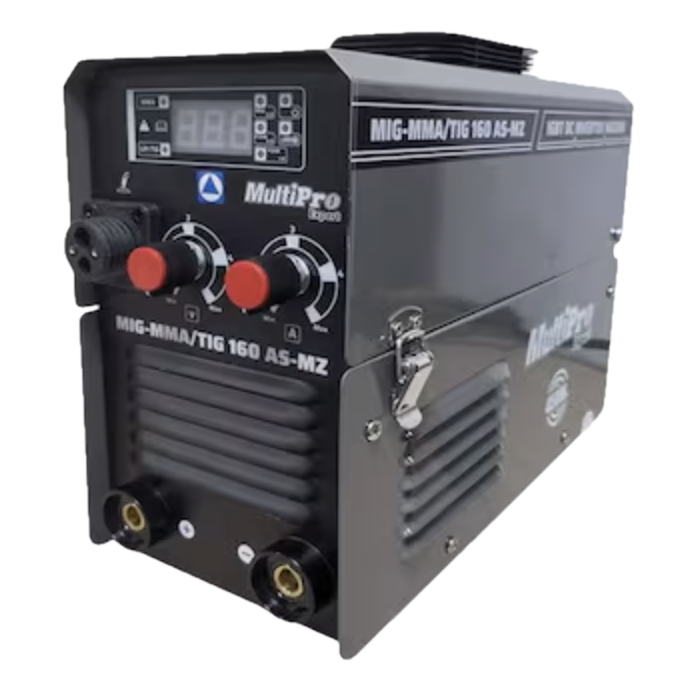

MultiPro MIG/MAG Welding Machine MIG-MMA/TIG 160 AS-MZ

Model Number MIG-MMA/TIG 160 AS-MZ Unit 1unit Input Voltage (V) 220 (1ph ± 15%) Frequency (Hz) 50/60 Rated Input Power (KVA) 4.9 No. Load Voltage (V) 56 Range of Output Current (A) 30 to 140 Range of Output Voltage (V) DC 15.5 to 21 Diameter of Welding Wire (mm) phi 0.8 ~ 1.0 Type of Feeder (Compact < 100mm) Spool (1 Kg Wire) Rated Duty Cycle (%) 60 Power Factor ≥ 0.7 Efficiency (%) ≥ 0.80 Insulation Type F Protection Type IP21S Dimensions (mm) 320x135x240 Material Thickness Welds (mm) 0.8 to 6.0 Material Welded Steel, Carbon Steel and Stainless Steel Berat (Kg) 7.1
