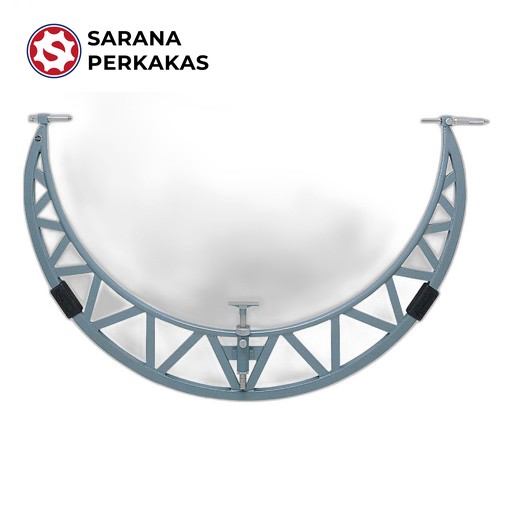

MITUTOYO OD MICROMETER 1400-1600/0.01MM 105-420

• Large, lightweight micrometer with excellent strength based on a pipe structure frame made of a combination of square and round pipes.

• Wide measuring range with anvil extension collars.

• 50 mm/ 2 in spindle stroke.

• Measuring faces: Carbide.

• Equipped with Ratchet Stop for constant measuring force.

Range (mm) 1400 - 1600

Graduation (mm) 0.01

Extension collar 2 pcs.

(50 mm, 100 mm)

Setting Standard (pcs.) 4

(every 50 mm)

Flatness (μm) 6

Spindle feed error (μm) 1.3

Parallelism (μm) 18

Digital/Analog: Analog

Inch-Metric: Metric
