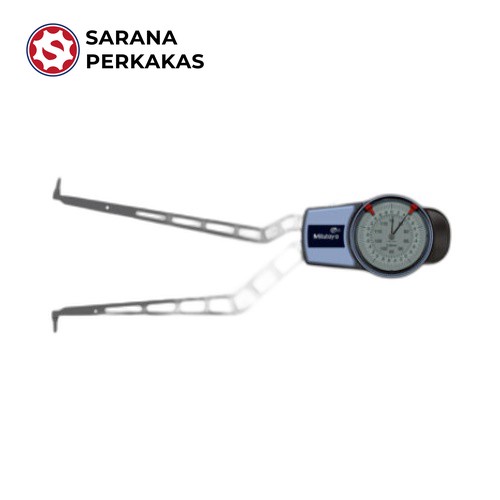

MITUTOYO DIAL CALIPER GAGE 209-902

The Mitutoyo 209-902 Internal Dial Caliper Gage has the following specifications:

Range: 40-90mm

Graduation: 0.05mm

Accuracy: +/- 0.05mm

Max. Measuring Depth L: 192mm

Max Groove Depth A: 8.5mm

Min. Groove Width B: 2.5mm

Measuring Contact Type: B

Size: 2mm

209-902 Features:

Versatile ID measuring gages for holes diameters, groove thickness, tube thickness, and hard-to-reach dimensions.

Available in Metric and Inch models

Dial models available in ranges up to 7.2″/120mm

Available with different types of jaws for various application needs

Indicator should be used in conjunction with a setting ring or micrometer

White dial face for easier, precise measurement readings

Crystal is glare-free with a scratch-resistant coating

IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet

Supplied in a fitted plastic case

Excellent resistance against water and dust (IP65 protection level)

Optimized measuring force

Ergonomically designed to lie securely in your hand when measuring
