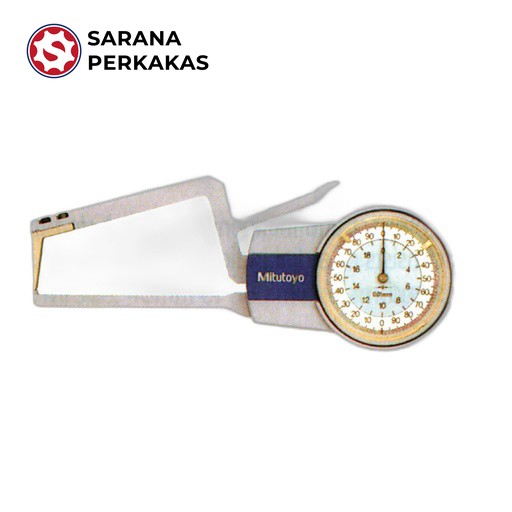

MITUTOYO DIAL CALIPER GAGE 0-20/0.01MM 209-406

Benefits

Versatile gauge with a choice of arm configurations suitable for mea suring grooves and other hard-to-measure

features.

For outside measu rement.

Features One fixed and one moving arm with adjustable carbide spherical conta ct points.

The deflection of the moving contact point is transmitted to the clear dial indicator, the results can be read directly.

For quick measuring of external grooves, wa

Specifications Display MM

Application Measurement of tube wall thickness

Me asuring span Mes 20 mm

Measuring range Meb 0 - 20 mm

Range of in dication Azb 0 - 20.5 mm

Scale interval Skw 0 .01 mm

Diameter mi n. d 9 mm

max. immersion depth Le -
