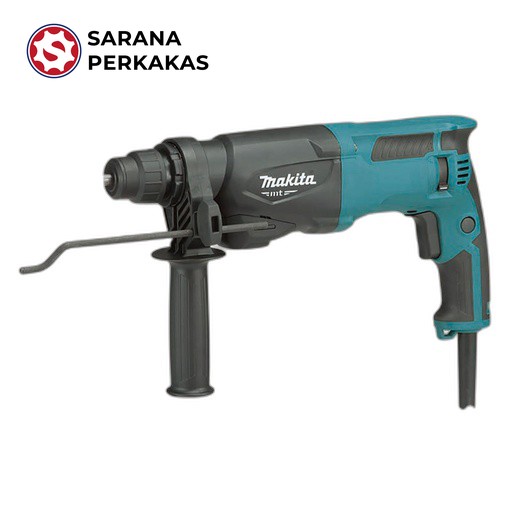

Makita M Series Rotary Hammer 22 mm (7/8 Inch) 1.9 J Rotary Hammer SDS-PLUS Bits M8700B

High performance and durability at less expense

Re-located operating mode lever for increased protection and durability

Improved bit guide for increased bit stability during drilling applications

Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip

Soft grip provides more comfort and control

Powerful 710 W motor delivers 1.9 J of impact energy to handle the most demanding applications

Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection

Forward/reverse lever – position of the switch allows brushes to be positioned so that the drill maintains same speed and torque in forward and reverse

2-mode operation for “Rotation Only” or “Hammering with Rotation”

Variable speed trigger allows operator to adjust speed based on materials or application

One-touch sliding chuck for easy bit installation and removal

Depth gauge for increased drilling consistency

Recessed lock-on button for continuous use

Double insulated

Techincal Info

• Continuous rating input : 710W

• Impact Energy : EPTA-Procedure 05/2009: 1.9 J

• Capacity:
  Concrete: 22 mm (7/8″)
  Core Bit: 54 mm (2-1/8″)
  Diamond Core Bit (Dry Type): 65 mm (2-9/16″)
  Steel: 13 mm (1/2″)
  Wood: 32 mm (1-1/4″)

• Blows Per Minute (BPM) : 0 – 4,350

• No Load Speed (RPM) : 0 – 1,100

• Vibration Level :
  Hammer Drilling into Concrete: 15.5 m/s²
  Drilling into Metal: 3.0 m/s²

• Sound Pressure Level : 90 dB(A)

• Sound Power Level : 101 dB(A)

• Dimensions (L x W x H) : 362x71x194 mm (14-1/4″x2-13/16″x7-5/8″)

• Net weight : 2.5 – 2.9 kg (5.6 – 6.4 lbs.)

• Power supply cord : 4.0 m (13.1 ft.)
