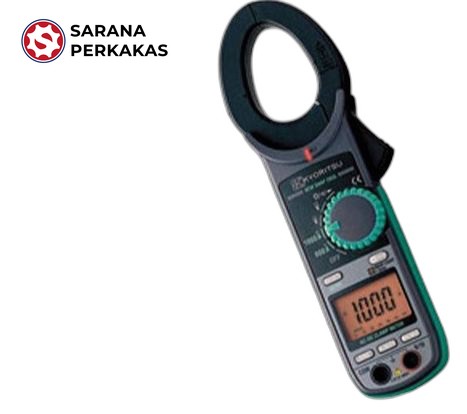

KYORITSU Digital Clamp Meter 1000A AC/DC 2055

Fitur:

Digital Clamp Meter AC/ DC 1000A

Designed to meet international safety standard IEC 61010-1 CAT.IV 600V.

CAT.IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits.

Thus, very useful for power distribution companies, power utilities and maintenance fields.

C A 0~ 600.0/ 1000A

| 1.5% rdg 5dgt ( 50/ 60Hz)

| 3.0% rdg 5dgt ( 40~ 400Hz)

DC A 0~ 600.0/ 1000A

| 1.5% rdg 5dgt

AC V 6/ 60/ 600V

Auto Ranging

| 1.3% rdg 4dgt ( 50/ 60Hz)

| 3.0% rdg 5dgt ( 40~ 400Hz)

DC V 600m/ 6/ 60/ 600V

Auto Ranging

| 1.0% rdg 3dgt

600/ 6k/ 60k/ 600k/ 6M/ 60M ( Auto Ranging)

| 1% rdg 5dgt ( 600~ 6M) / 5% rdg 8dgt ( 60M)

Continuity buzzer Buzzer Sounds at 100

Frequency/ DUTY 10/ 100/ 1k/ 10kHz ( Auto Ranging) / 0.1~ 99.9%

Conductor Size 40mm

Withstand Voltage 6880V AC for 5 seconds

Safety Standard IEC 61010-1 CAT.IV 600V,

IEC 61010-031,

IEC 61010-2-032,

IEC 61326

Power Source R03 ( 1.5V) ( AAA) 2

Dimensions 254( L) 82( W) 36( D) mm

Weight 310g

Accessories 7066A ( Test leads)

9094 ( Carrying case)

Instruction Manual
