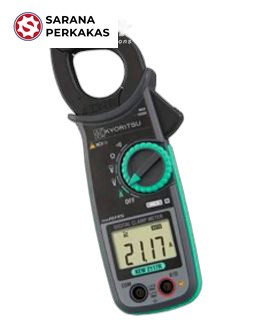

Kyoritsu AC Digital Clamp Meters 2117R 1000A/600V

Spesifikasi :

• Model Numbe : 2117R

• DC (V) : 60.00/600.0V

• (Auto-ranging) : +/- 1.0%rdg +/- 3dgt (60V) +/- 1.2%rdg +/- 3dgt (600V)

• Resistance : 600.0 Ohm/6.000/60.00/600.0 kiloOhm

• (Auto-ranging) +/- 1.0%rdg +/-5dgt (600 Ohm) +/- 2.0%rdg +/- 3dgt (6/60/600 kiloOhm)

• Conductor Size : max. diameter 33mm

• Power Source : R03/LR03 (AAA) (1.5V) x2

• Dimension (LxWxD) : 204x81x36mm

Features:

• Fully Safety jaw

• Ergonomic over-molded body gives convenient one-hand operation

• Large easy-to-read display with 0.01A resolution

• Accurate reading with True RMS 60/600/1000A auto-ranging

• Long battery life

Safety Standard: IEC 61

AC A :

• 60.00/600.0/1000A (Auto-ranging)

• +/- 1.5%rdg +/- 4dgt [45 - 65Hz]

• +/- 2.0%rdg +/- 5dgt [40 - 1kHz]

AC V :

• 60.00/600.0V (Auto-ranging)

• +/- 1.0%rdg +/- 2dgt [45 - 65Hz] (600V)

• +/- 1.5%rdg +/- 4dgt [40 - 1kHz] (60/600V)

• Continuity Buzzer : 600 Ohm (Buzzer sounds below 90Ohm)
