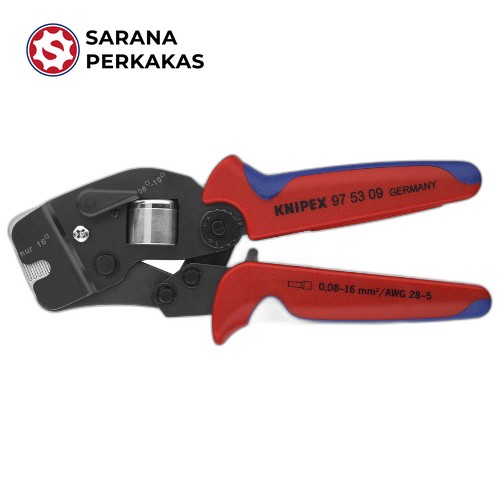

KNIPEX CRIMPING PLIERS F. CABLE LINKS 975309

7 1/2" Self-Adjusting Crimping Pliers For Wire Ferrules

Self-adjusting crimping pliers for end sleeves (ferrules) with front loading

For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4

Crimping from 28 to 8 and 6 AWG (0.08 - 10.0 and 16.0 mm²) in one profile; with selector lever for setting the crimping area either to 28 - 8 and 6 AWG (0.08 - 10 mm² or 16 mm²); particularly suitable for all twin ferrules (end sleeves) up to 2 x 6 mm² or 2 x AWG 8

Self-adjusting adaptation to the desired wire end sleeve ferrule size: no crimping faults caused by using the wrong die

Repetitive, high crimping quality due to integral lock (self-releasing mechanism)

Crimping pressure has been set precisely (calibrated) in the factory

Optimum transmission of force due to toggle lever for fatigue-reduced operation

High operation comfort thanks to handy shape and low weight

Chrome vanadium electric steel in special quality, oil-hardened

Pliers burnished

Suitable in particular for all twin end sleeves (ferrules) up to 2 x 6 mm² or 2 x AWG 8

With selector lever for setting the crimping area either to 7 to 28 or 5 AWG (0.08 - 10 mm² or 16 mm²)

Handles with multi-component covers
