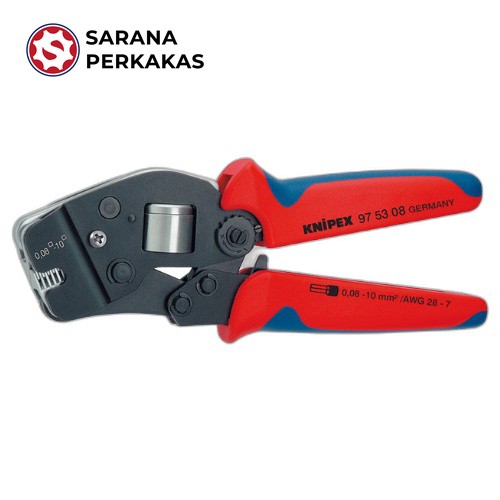

KNIPEX CRIMPING PLIERS F. CABLE LINKS 975308SB

7 1/2" Self-Adjusting Crimping Pliers For Wire Ferrules

Self-adjusting crimping pliers for end sleeves (ferrules) with front loading

For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4

Crimping from 28 to 8 AWG (0.08 - 10.0 mm²) in one profile; wire ferrules (end sleeves) up to 14 AWG (2.5 mm²) can also be loaded parallel from the side; particularly suitable for all twin ferrules (end sleeves) up to 2 x 4 mm² or 2 x AWG 10

Self-adjusting adaptation to the desired wire end sleeve ferrule size: no crimping faults caused by using the wrong die

Repetitive, high crimping quality due to integral lock (self-releasing mechanism)

Crimping pressure has been set precisely (calibrated) in the factory

Optimum transmission of force due to toggle lever for fatigue-reduced operation

High operation comfort thanks to handy shape and low weight

Chrome vanadium electric steel in special quality, oil-hardened
