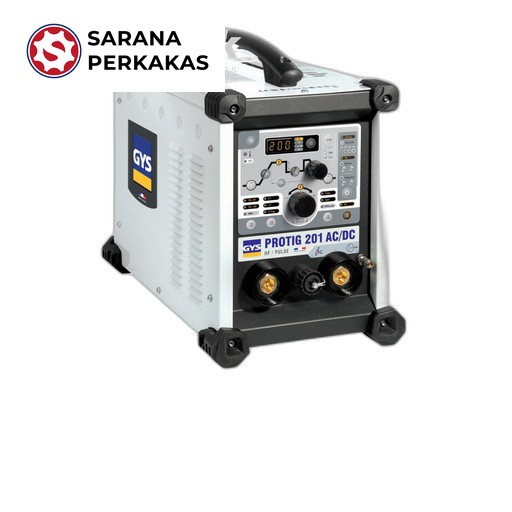

GYS GTAW/TIG AC/DC PROTIG 201 FV (With Accessories)

Input voltage: 1 Ph, 110/220V 50/60Hz
Current range: 10-160A (DC), 10-200A (AC)
Duty cycle: 60% at 90A (AC), 100A (DC)
OCV: 70 Vdc
Class of insulation: IP
Applied Welding Rod: Up to 4,0mm
Net weight: 15 kg
External dimension: 24 x 41 x 36 cm

Six AC/DC TIG Processes
- STANDARD DC TIG: Ensures high-quality welding on all ferrous materials, such as steel, stainless steel, as well as copper, its alloys, and titanium, etc.
- PULSED DC TIG: Controls the melting temperature, limits deformation, and allows sheet metal from 0.3 mm thick to be assembled effectively.
- SPOT DC TIG: Pre-assemble ferrous metals by spot welding them together.
- EASY AC TIG: Makes using the welding machine even easier thanks to predefined user settings. The operator only has to select the tungsten electrode’s diameter on the machine’s control panel.
- STANDARD AC TIG: Designed for welding aluminium and its alloys (Al, AlSi, AlMg, and AlMn, etc.). An alternating current effectively cleans the aluminium for perfect welds.
- SPOT AC TIG: Pre-assemble aluminium parts and accessories by spot welding them together.
