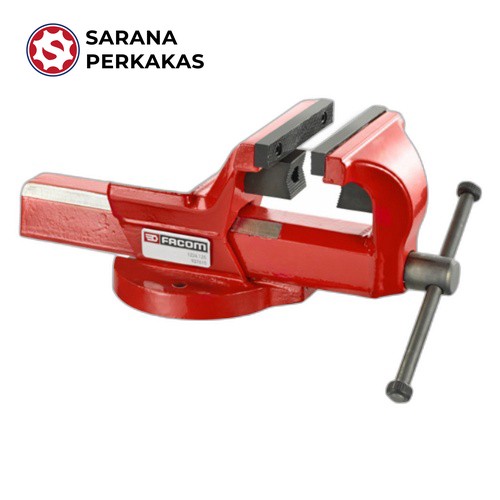

FACOM BENCH VICE FIXED 235MM OPENJAW 1224.175E

Vices in spheroid graphite cast iron, tensile strength 700 N/mm2 mi nimum.

Wide bearing base of the prism guide/mobile jaw: lack of gui de flexion, vice operation preserved even under heavy loads.

Interc hangeable parallel jaws. High wear resistance, hardness 48/53 HRc

Removable V-shaped jaws for tightening the pipes.

Hardness 40/46 HRc

Adjustment system by 2 complex gap compensation screws.

Burnis hed control bar.

Simple, strong and durable

A maxi (mm) 235

B (mm) 118

H [mm] 216

H1 [mm] 123 L [mm] 532

L1 [mm] 178

L2 (mm) 68

13 [mm] 111
