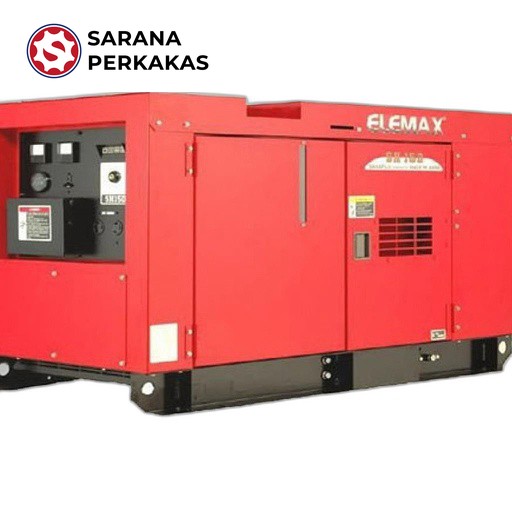

Elemax Heavy-Duty Generators - Sound Proof 3 Phase 20,0 Kva SHT -25D (20,0 KVA)

Elemax Heavy-Duty Generators - Sound Proof 3 Phase 20,0 Kva SHT -25D (20,0 KVA)

Brand: Elemax

Rp 217.027.025

Rp 195.324.323

SALE

Butuh Bantuan? Kontak Kami

Deskripsi

Spesifikasi:

-High Performance Diesel Engine *1 Kubota V2203 Vertical, water-cooled, 4-cycle diesel engine The V2203 diesel engines ensure greater power, more efficient combustion, and cleaner emissions. -Brushless Alternator STAMFORD PI144D Advanced brushless alternator and automatic voltage regulator (AVR) delivers high quality electricity. Voltage Regulation: ±1% Waveform Distortion: below 3% -Control Panel *2 Easy to see and easy operation.Standard accessories:4-meters(Volt, Ampere, Frequency, Hour), Warning lights, Key switch, Circuit breaker, Output terminal(3-phase, 4-wire). -Automatic Air Bleeding This system reduces troublesome maintenance procedures by automatically removing air from the fuel line. -Safety System Emergency unit detects abnormally low oil pressure or high coolant temperature and stops engine automatically to prevent damage. -Large Capacity Fuel Tank The larger capacity fuel tank enables longer periods of continuous operation. -One Side Maintenance Oil, fuel, water, and filters are all located on one side for easy maintenance. -ATS(AMF) Terminals ATS terminals are standard equipment.

  • Rated Power : 20.0 KVA (16.000 Watt)
  • Phase/Voltage : Three/380 V/50 Hz
  • Rated Power Factor (Cos phi) : 0.8
  • Fuel Tank Capacity : 72 Litres
  • Engine Model : KUBOTA V2203-B
  • Engine Type : Self-exciting, 4-pole, Brushless, Field rotating type
  • Displacement : 2197 cc
  • Starting System : Electric Starter
  • Fuel Type : Diesel (Solar)
  • Sound Level [7 meter] : 66 dB(A)
  • Continuous Operating Hours : 17.6 Hours
  • Dimension ( L x W x H) : 1660 x 690 x 900 mm
  • N.W./G.W. : 540.00 Kg
  • Standard Accessories : Fitur : ATS Terminal
  • Product Guarantee : Service Guarantee
