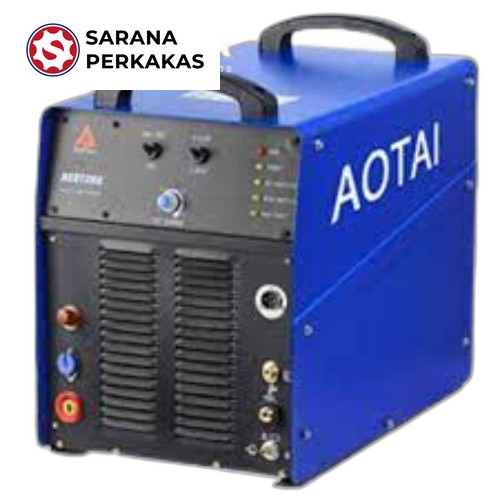

AOTAI PLASMA CUTTING INVERTER 200A ACUT200

Rated Input Voltage (V) 380 ± 10%

Frequency (Hz) 50/60

Phase 3

Rated Input Capacity (kVA) 42.8

Rated Input Current (A) 65

Duty Cycle (40°C) 100%@200A

OCV (V) 350

Output Current Range (A) 30-200

Arc Ignition Method Special HF

Max. Cutting Thickness (mm) 55

Clean Cut Thickness (mm) 10-24

Air Pressure (MPa) 0.4-0.55

Water Flow Rate (L/min) 1.4

Protection Class IP23

Dimensions (mm) 635x399x542
